High‑Speed Disc Harrow: Features, Operation and Advantages for Soil Preparation
High‑Speed Disc Harrows—also known as High‑Speed Disc Cultivators—are agricultural implements designed for fast, efficient, shallow soil preparation before seeding. Their ability to operate at higher ground speeds without compromising work quality makes them ideal for quick field passes following harvest or as part of secondary tillage.

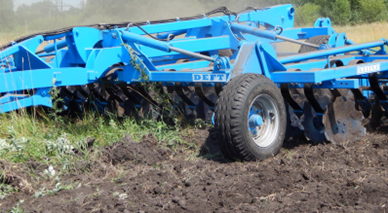

Design and Construction
These implements are built to be light yet robust, enabling stable performance at higher speeds. They typically use 22‑ to 24‑inch discs mounted on a frame connected to the tractor’s three‑point hitch (3‑pt) or carried frame.
This configuration provides:
- Greater maneuverability across irregular fields,
- Easy adaptation to different soil conditions,
- Reliable high‑speed performance, aided by the outer cutting edge of the discs, while notched discs improve residue slicing and breakdown.
In secondary tillage with 22‑inch discs, straw can be incorporated at ground speeds up to ~12 km/h when using discs with lower concavity. As disc concavity increases, soil inversion and residue incorporation improve, but tractor power demand rises accordingly—an important trade‑off to consider.
Function and Field Benefits
The primary function of a High‑Speed Disc Harrow is to break, mix, and level the upper soil layer, removing weeds and incorporating crop residues. As the tractor pulls the implement, the discs penetrate the soil, turning and mixing organic matter into the top layer. This process:
- Improves soil structure and surface tilth,
- Enhances water retention and infiltration,
- Creates a uniform seedbed for subsequent planting operations.
Advantages of High‑Speed Disc Harrows
Operational Efficiency
High ground speeds enable larger area coverage in less time, cutting field time and operating costs.
Versatility
Suitable for a range of soils—from lighter textures to moderately compact conditions—particularly effective for shallow post‑harvest passes and seedbed refinement.
Ease of Handling
The suspended, lighter design improves transport and maneuvering, even on uneven or smaller plots.
Soil Improvement
Mixing residues into the topsoil supports better tilth, aeration, and moisture management.
Key Considerations Before Choosing
Soil Type & Task
High‑Speed Disc Harrows are designed for shallow operations and seedbed preparation; they are not intended for deep decompaction.
Tractor Power Matching
Higher disc concavity increases aggressiveness and residue incorporation, but also raises draft and power requirements. Match implement width and disc design to available horsepower.
Maintenance
Regular inspection of discs, bearings, and frame preserves performance and extends service life—especially important at higher operating speeds.
